Name: Angustos AL-UV716L
Brand: Angustos
SKU: AL-UV716L
Rating: 5 (5 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

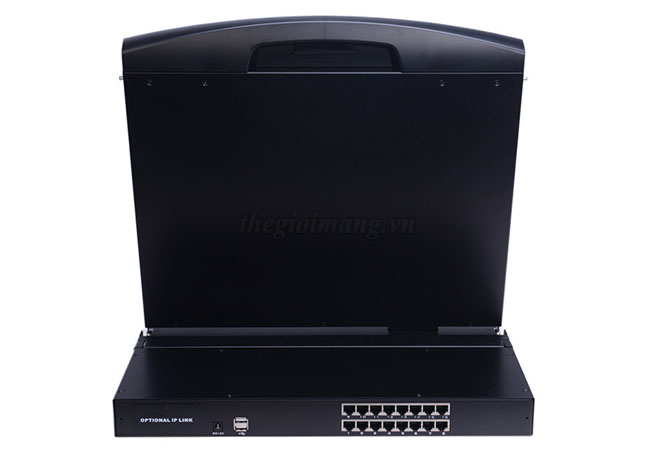

Thiết bị màn hình KVM Angustos AL-UV716L

Product	AL-UV716L
KEYBOARD & MOUSE
Keyboard	104 Keys, Detachable Multiple Languages Option
Compatible	Win/Sun/Unix/Linus/Mac
Mouse	Touchpad
Mouse Resolution	>1000 dots/inch (40x40/mm)
MTBF	1,000,000 Press
KVM SWITCH MODULE
Direct PC connection	16
Maximum PC Connection	16,384
Port Selection	OSD, Button, Hot Key, IP (Opt)
Console Connector	DB-15 Pins,RJ45 (IP Module), USB
KVM Connector	RJ-45 Female x 16
Power	DC 12V/AC 100-240V 50-60Hz
Switch button	Panel Digital Keys
Reset Switch	Panel Digital Keys
Status LEDs - Nixie Tube	Nixie Tube (Selected Port) Red led (Online Port)
Server Interface	PS/2 , USB
Cascadable	Support cascade to max 3 levels
IP Module	Optional
LCD MONITOR
Size / Ratio	17” / 4:3
Video	SXGA TFT - LCD.DDC2B
Visible Square	337.92 H x 270.336 V
Resolution	1280 x 1024 @ 60Hz (Optimal) 1920 x 1200 @ 60Hz (Max)
Color	16.7 Mil. , RGB 6bit + Hi_FRC
Contrast	1000 : 1 (TyP)
Back light / Brightness	LED / 300 nit (cd/m2)
Pixel Pitch	0.264 x 0.297 mm
MTBF	100,000 hours
CPU MODULE (AC-Dx100L Series)
Video connection	VGA / DVI / HDMI
Link connection	1 x RJ-45 Female
OPERATIONAL SPECIFICATION
Operating Temp	-10^oC - 50^oC
Storage Temp	-20^oC - 60^oC
Humidity	0-80%RH, No Condensation
PHYSICAL SPECIFICATION
Housing	Metal
Dimension LCD / KVM	407 x 445 x 45 / 148.4 x 445 x 45mm
Weight LCD / KVM	6.15 kg / 2.74 kg

Xem thêm

Thông số kỹ thuật

Angustos AL-UV716L – 17 Inch LCD 16 port CAT5 KVM Single Rail

High Density Utilization

Front USB for back up mouse-keyboard.
Connect to servers with distance up to 40m with single Cat5e / 6 UTP cable
LCD KVM console with an 17” LED-backlit 4:3 LCD monitor in a single rail design.
Short-depth overall size allowing user to work with in condensed space of high density Rack
Slide Lock – secure the console drawer to remain firmly in slide position when not in use.

Flexible compatibility

Superior video quality – up to 1280 x 1024 @60Hz; DDC2B; 16.7 Mil. Color.
Cascade up to 256 computers from a single console (With compatible KVM Switches)
Auto PS/2 and USB interface sensing.
Keyboard and mouse emulation (PS/2 and USB) for seamless switching.
Computer selection with pushbuttons, hotkeys, and multilingual on-screen display (OSD).
Two level password security.
Operates with all software and operating systems including all Windows versions, DOS, Linux, Unix, BSD, all Sun OS, all Mac OS and NetWare.
Keyboard Language supports: English (UK), English (US), German (GER.) Japanese, Korean, Russian, Swedish, Chinese.

Installation Flexibility
