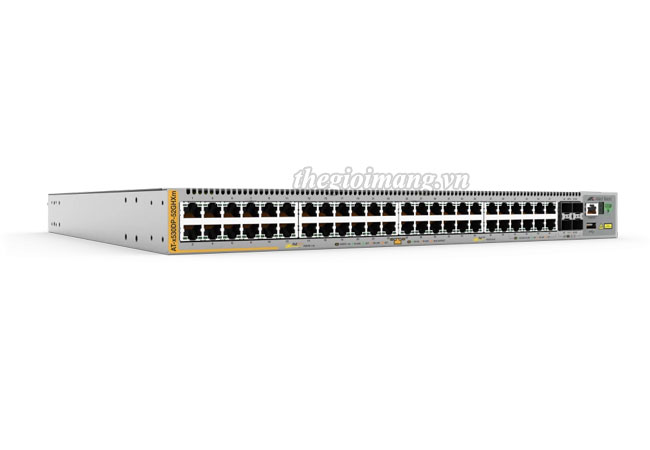

Thiết bị chuyển mạch Switch Allied Telesis AT-x530DP-52GHXm
Model | x530DP-52GHXm |
10/100/1000T (RJ-45) COPPER PORTS | 40 |
100M/1/2.5/5 GIGABIT PORTS | 8 |
1/10 GIGABIT SFP+ PORTS | 4 |
STACKING PORTS | 2* |
POE ENABLED PORTS | 48 |
POE++ ENABLE PORTS | 24 (ports 25-48) |
SWITCHING FABRIC | 240Gbps |
FORWARDING RATE | 179Mpps |
Performance | 40Gbps of stacking bandwidth using front panel 10G SFP+ ports 10KB L2 and 9KB L3 Jumbo frames 4094 configurable VLANs Up to 16K MAC addresses Up to 128 Link Aggregation Groups (LAGS) - any combination of static and dynamic (LACP) 1GB DDR3 SDRAM, 256MB NAND flash memory Packet buffer memory: 1.5MB |
Physical Specifications | |
WIDTH X DEPTH X HEIGHT | 441 x 421 x 44 mm |
MOUNTING | Rack-mount |
WEIGHT | 5.6 kg |
Power and Noise Characteristics | |
NO POE LOAD | |
MAX POWER CONSUMPTION (W) | 150 |
MAX HEAT DISSIPATION (BTU/H) | 512 |
NOISE (DBA) | 54 |
FULL POE+ LOAD | |
MAX POWER CONSUMPTION (W) | 1930 |
MAX HEAT DISSIPATION (BTU/H) | 6586 |
NOISE (DBA) | 63 |
MAX POE POWER (W) | 1480 |
POE SOURCING PORTS | |
POE (7.5W) | 48 |
POE (15.4W) | 48 |
POE + (30W) | 48 |
POE ++ (60W) | 24 |
AT-x530DP-52GHXm : 40-port 10/100/1000T and 8-port 100M/1/2.5/5G PoE++ stackable switch with 4 SFP+ ports and dual hotswap PSU bays
Data sheet Allied Telesis x530 Series Stackable Multi-Gigabit Layer 3 Switches
