Thông số kỹ thuật Switch Allied Telesis IE200-6FP
| Specifications | |
| 10/100T (RJ-45) COPPER PORTS | 4 |
| 10/100/1000T (RJ-45) COPPER PORTS | |
| 100/1000XSFP PORTS | 2 |
| SWITCHING FABRIC | 4.8Gbps |
| FORWARDING RATE | 3.57Mpps |
| Performance | RAM memory 256MB DDR SDRAM ROM memory 64MB FLASH MAC address 2K entries Packet Buffer 256 KBytes (2 Mbits) Priority Queues 4 Simultaneous VLANs 2K entries (1K entries recommended) VLANs ID range 1 – 4094 Jumbo frames 9KB jumbo packets Multicast groups 512 entries |
| Physical Specifications | |
| WIDTH x HEIGHT x DEPTH | 95 mm x 159 mm x 134 mm |
| WEIGHT | 1.5 Kg |
| Power Characteristics | |
| MAX POWER CONSUMPTION (NO POE LOAD) | 23W |
| MAX HEAT DISSIPATION (NO POE LOAD) | 79 BTU/hr |
| MAX POWER CONSUMPTION (FULL POE LOAD) | 144W |
| MAX HEAT DISSIPATION (FULL POE LOAD) | 79 BTU/h |
| Standards and Protocols | IEEE 802.1AX Link aggregation (static and LACP) IEEE 802.2 Logical Link Control (LLC) IEEE 802.3 Ethernet IEEE 802.3ad Static and dynamic link aggregation IEEE 802.3af Power over Ethernet (PoE) IEEE 802.3at Power over Ethernet plus (PoE+) IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3u 100BASE-XIEEE 802.3x Flow control - full-duplex operation IEEE 802.3z 1000BASE-X |

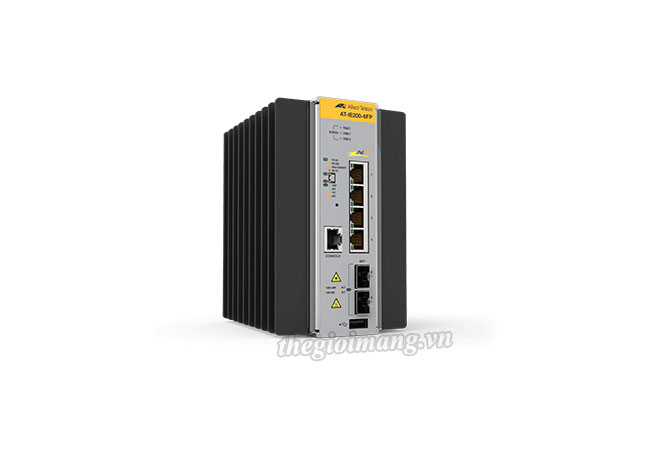

AT-IE200-6FP-80 4x 10/100T,2x 100/1000X SFP,Industrial Ethernet, Layer 2 Switch, PoE+ Support
