Thông số kỹ thuật thiết bị mạng Switch Allied Telesis GS950/8
| Performance | |
| Ethernet | 14880pps for 10Mbps |
| Fast Ethernet | 148800pps for 100Mbps |
| 1488000pps for 1000Mbps Ethernet | |
| MAC addresses | 8K |
| VLAN IDs available | 4K |
| Max VLANs | 256 |
| DRAM | 64 MB |
| Flash | 16 MB |
| Packet bufer | 4 MB |
| Switching capapcity | 16 Gbps |
| Throughput | 71.2 Mpps |
| Forwarding Rate | 11.9 Mpps |
| Interface connections | |
| 10/100/1000T | RJ-45 |
| 100TX, 100FX, 1000T, 1000SX or 1000LX | SFP |
| Power characteristics | |
| Frequency | 50-60 Hz |
| Voltage | 100-240 VAC |
| Max power consumption | 8.7W (No PoE load) |
| Max heat dissipation | 26.69 BTU/h (No PoE load) |
| Standard and compliance | |
| IEEE 802.3 | CSMA/CD |
| IEEE 802.3i | 10T |
| IEEE 802.3u | 100TX |
| IEEE 802.3z | 1000SX/LX |
| IEEE 802.3z/ab | 1000T |
| IEEE 802.3x | Flow control |
| IEEE 802.1p | Prioritization (four queues) |
| IEEE 802.1x | Authentication |
| IEEE 802.1d | Bridging |
| IEEE 802.3ad | Link aggregation |
| IEEE 802.1Q | Tagged VLAN |
| IEEE 802.1d/w | Spanning-Tree, Rapid Spanning-Tree |
| Environmental Specifications | |
| Operating temperature | 0 to 40ºC |
| Non-operating temperature | -25 to 70ºC |
| Operating humidity | 5% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Vibration | IEC 68-2-36 |
| Shock | IEC 68-2-29 |
| Drop | IEC 68-2-32 |
| Environmental compliance | RoHS, China RoHS, WEEE, Eu-RoHS |
| Physical Characteristics | |
| Dimensions | 280 x 180 x 44 mm |
| Weight | 1.5 kg |
Giá chỉ mang tính tham khảo. Vui lòng liên hệ để có giá tốt nhất

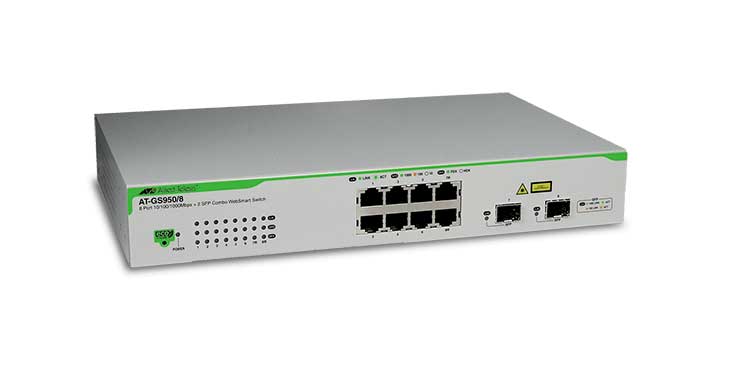

AT-GS950/8 : 8-port 10/100/1000T eco-friendly WebSmart switch with 2 SFP combo ports
