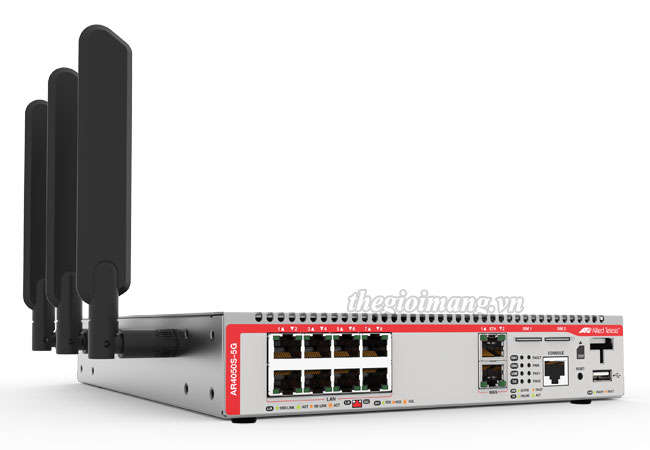

Model	AT-AR4050S-5G
Processor and memory
Security processor	1.5GHz quad-core
Memory (RAM)	2GB
Memory (Flash)	4GB
Frequency bands
Sub 6GHz Bands	n1, n2, n3, n5, n28, n41, n66, n71, n77, n78, n79
LTE Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B302, B32, B34, B38, B39, B40, B41, B42, B463, B48, B66, B71
Security features
Firewall	Stateful deep packet inspection application aware multi-zone firewall
Application proxies	FTP, TFTP, SIP
Threat protection	DoS attacks, fragmented & malformed packets, blended threats & more
Security subscriptions	Next-Gen Firewall, Advanced Threat Protection
Tunneling & encryption
Site-to-site VPN tunnels (Ipsec)	1,000
Client-to-site VPN tunnels (OpenVPN)	1000
Encrypted VPN	IPsec, SHA-1, SHA-256, SHA-512, IKEv2, SSL/TLS VPN
Encryption	3DES, AES-128, AES-192, AES-256
Key exchange	Diffie-Hellman groups 5, 14, 16
Dynamic routed VPN	RIP, OSPF, BGP, RIPng, OSPFv3, BGP4+
Point to point	Static PPP, L2TPv2 virtual tunnels, L2TPv3 Ethernet pseudo-wires
Encapsulation	GRE for IPv4 and IPv6
Management & authentication
Logging & notifications	Syslog & Syslog v6, SNMPv2c & v3
User interfaces	Web-based GUI, scriptable industry standard CLI
Secure management	SSHv1/v2, strong passwords
Management & authentication
Management tools	Allied Telesis Autonomous Management FrameworkTM (AMF) Autonomous Wave Control for wireless LAN APs (AWC) Vista Manager EX, AMF-Security mini
User authentication	RADIUS, TACACS+, internal user database, web authentication, MAC authentication, 802.1x port authentication
Command authorization	TACACS+ AAA (Authentication, Accounting and Authorization)
Networking
Routing (IPv4)	Static, Dynamic (BGP4, OSPF, RIPv1/v2), source-based routing, policy-based routing, VRF-Lite, SD-WAN
Routing (IPv6)	Static, Dynamic (BGP4+, OSPFv3, RIPng), policy-based routing, SD-WAN
Multicasting	IGMPv1/v2/v3, PIM-SM, PIM-DM, PIM SSM, PIMv6
Resiliency	STP, RSTP, MSTP
High availability	VRRP, VRRPv3
Traffic control	8 priority queues, DiffServ, HTB scheduling, RED curves
IP address management	Static v4/v6, DHCP v4/v6 (server, relay, client), PPPoE
NAT	Static, IPsec traversal, Dynamic NAPT, Double NAT, subnet-based NAT
Link aggregation	802.3ad static and dynamic (LACP)
VLANs	802.1Q tagging
Discovery	802.3ad static and dynamic (LACP)
Hardware characteristics
Input power	90V to 264V AC (47 to 63HZ)
Max power consumption	28W
LAN ports	8x 10/100/1000BASE-T (RJ-45)
WAN ports	2x 10/100/1000BASE-T (RJ-45)
Other ports	1x USB port, 1x RJ-45 console port, 2x SIM slots
Product dimensions (W x D x H) (without antenna)	220 x 260 x 42.5 mm
Packaged dimensions (W x D x H)	436 x 288 x 112 mm
Product weight	2 kg (4.41 lb)
Typical / Max noise	35.1dB
Environmental specifications
Operating temperature range	0° to 40°C (32°F to 104°F)
Storage temperature range	-20° to +60°C (-4°F to 140°F)
Operating relative humidity range	5% to 80% non-condensing
Storage relative humidity range	5% to 95% non-condensing
Operating altitude	2,000 meters maximum (6,600 ft)
Regulations and compliances
EMC	EN55032 class A, FCC class A, VCCI class A
Immunity	EN55024, EN55035, EN61000-3-2, EN61000-3-3
Radio	EN301489-1, EN301489-52, EN301908-1, EN301908-2, EN301908-13, EN301908-25, 3GPPTS-38.521-3, TS134121-1, TS136521-1, EN50385, EN62311, EN62232
Safety standards	EN62368, UL62368-1, CSA-C22.2 NO.62368-1, AS/NZS 62368.1
Safety certifications	UL, TUV
Reduction of Hazardous Substances (RoHS)	EU RoHS6 compliant, China RoHS compliant
