Name: 3onedata IES2005
Brand: 3onedata
SKU: IES2005
Rating: 5 (15 reviews)

Hỗ trợ trực tuyến

Hỗ trợ Tư Vấn

0909648899

Kinh Doanh 01

0917684899

Kinh Doanh 02

0917993131

Kinh Doanh 03

0915793030

Kinh Doanh 04

0906641689

Hỗ trợ Kỹ Thuật 1

02862578356

Hỗ trợ Kỹ Thuật 2

02862578355

Mô tả sản phẩm

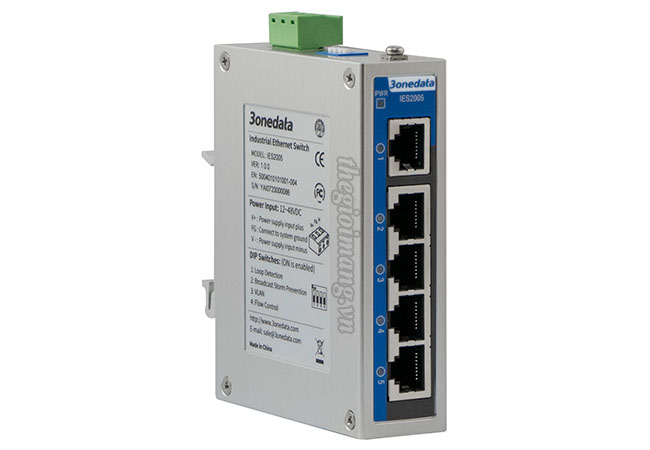

Thiết bị chuyển mạch Công nghiệp 3Onedata IES2005

Model	IES2005-5T-P48
Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for flow control
Interface	Copper port: 10/100Base-T(X), RJ45, Full/Half Duplex Mode, MDI/MDI-X Autotunning
Switch Property	Transmission mode: Store and Forward MAC address: 2K Backplane bandwidth: 1G Switch time delay: <10μs
Power Requirement	12~48VDC, 3-pin 5.08mm pitch terminal blocks Anti-reverse connection protection, built-in over-current 3.0A protection
Power Consumption	No-load: 0.4W@24VAC Full-load: 1.0W@24VAC
Environment Limit	Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP34 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 28mm×103mm×78mm
Industrial Standard	IEC 61000-4-2 (ESD), Level 3 • Air discharge:± 8kV • Contact discharge: ±6kV IEC 61000-4-4 (EFT), Level 3 • Power supply: ±2kV • Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 • Power supply: differential mode±1kV, common mode±2kV • Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS
