Mô tả sản phẩm

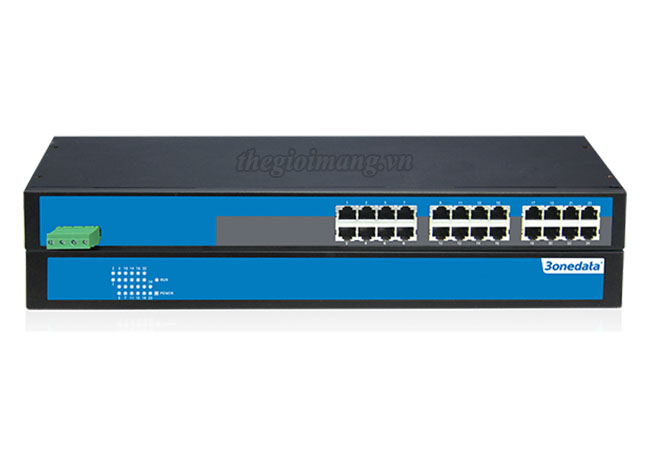

Thiết bị chuyển mạch 3Onedata ES1024

Model	ES1024
Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX
Interface	Copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Switch Property	Transmission mode: Store and Forward MAC address: 8K Packet buffer size: 2.5M Backplane bandwidth: 12.8G Switch time delay: <15μs
Power Requirement	100-240VAC/DC, 4-pin 7.62mm pitch terminal blocks
Power Consumption	No-load: 4.2W@220VAC Full-load: 6.7W@220VAC
Environment Limit	Operating temperature: 0~70℃ Storage temperature: -40~75℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP30 protection, metal Installation: 19 inches rack mounting Dimension (W x H x D): 441.6mm×44.6mm×207.9mm
Industrial Standard	IEC 61000-4-2 (ESD), Level 4 • Air discharge:± 8kV • Contact discharge: ±8kV IEC 61000-4-4 (EFT), Level 4 • Power supply: ±4kV • Ethernet interface: ±2kV IEC 61000-4-5 (Surge), Level 4 • Power supply: differential mode±2kV, common mode±4kV • Ethernet interface: ±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Certification	CE, FCC, RoHS
