Cấu hình Captive Portal trên wifi FortiAP Fortinet

Thảo luận trong 'Wireless' bắt đầu bởi hvminh, 25/8/17.

  1. hvminh

    hvminh Member

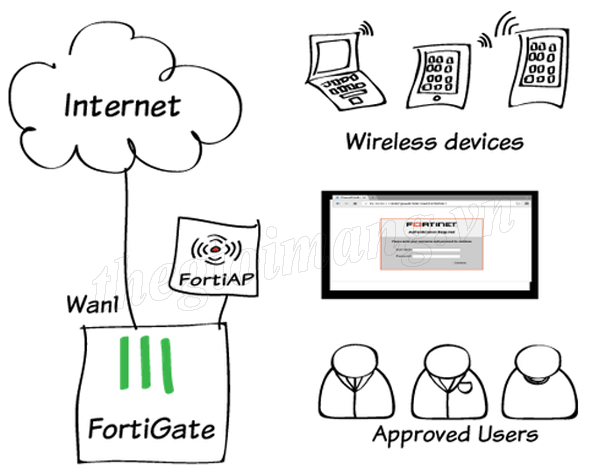

    Trong bài viết này mình sẽ hướng dẩn các bạn cấu hình Captive Portal trên FortiAP sử dụng Firewall Fortigate làm controller

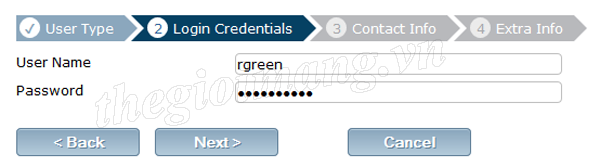

    - Create user accounts (User & Device -> User -> User Definition)

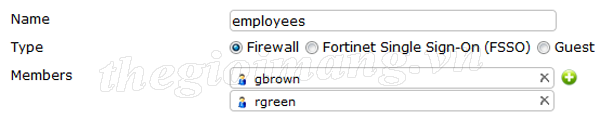

    - Create a user group (User & Device -> User -> User groups)

    - Creat the SSID

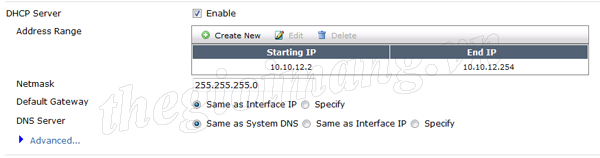

    + Wifi Controller -> WiFi Network -> SSID

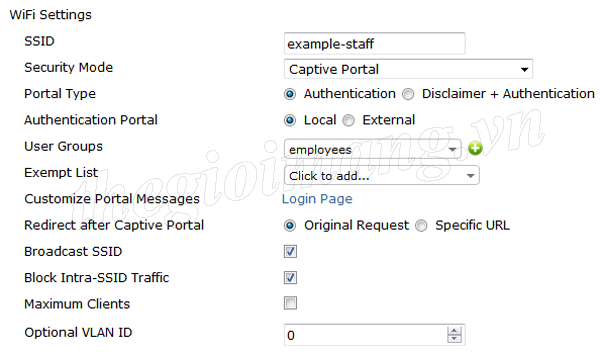

    + Config Captive Portal


    - Create the security policy

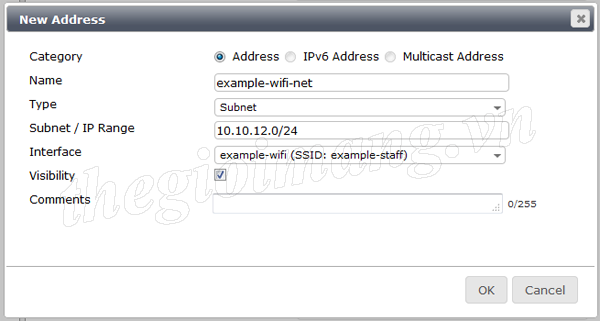

    + Policy & Objects -> Objects -> Addresses

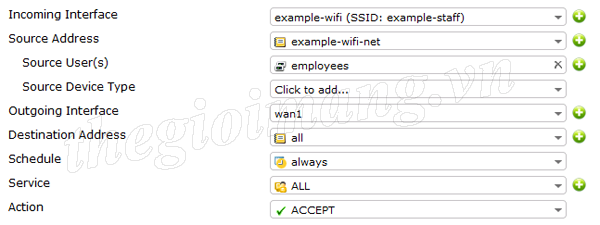

    + Policy & Objects -> Policy -> IPv4


    - Connect and authorize the FortiAP unit

    + System -> Network -> Interface


    + Wifi controller -> Managed Access Points -> Managed FortiAPs

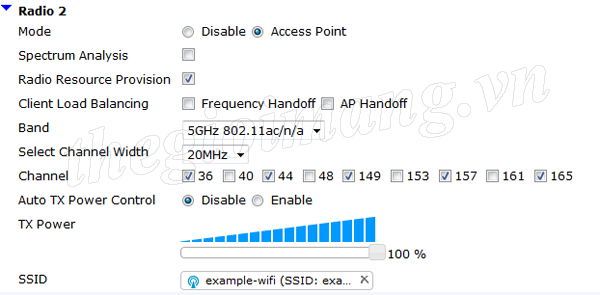

    + Wifi controller -> Wifi Network -> FortiAP Profiles

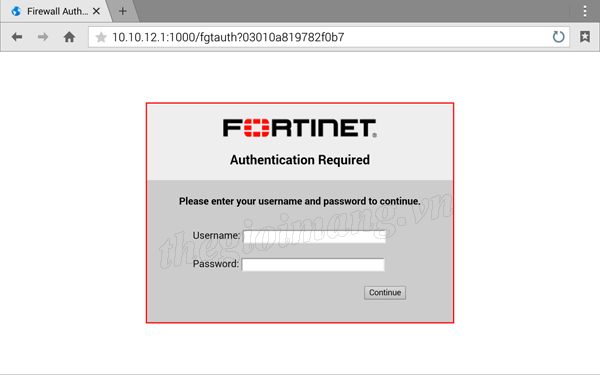

    - Results



    Chúc các bạn thành công!
