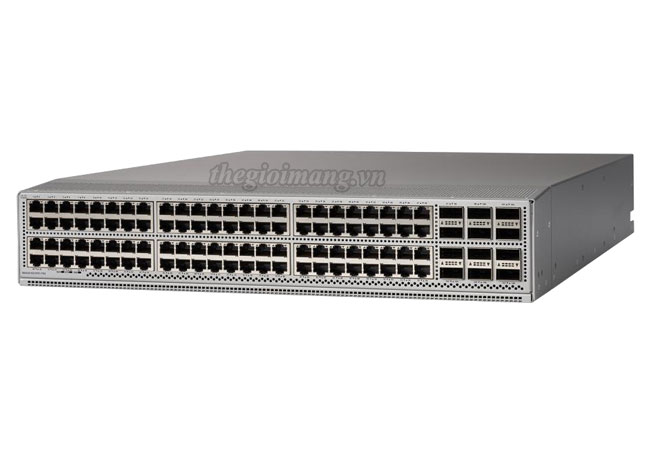

Thiết bị chuyển mạch Switch Cisco Nexus N9K-C93216TC-FX2
Model | N9K-C93216TC-FX2 |
Switch specifications | |
Ports | 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gbps QSFP28 ports |
Supported speeds | 100M/1/10 Gbps RJ45 downlinks 40/100-Gbps on uplinks Breakout supported ports, 97-108: 4x10/25G |
CPU | 4 cores |
System memory | Upto 24 GB |
SSD drive | 128 GB |
System buffer | 40 MB |
Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
USB ports | 1 |
RS-232 serial ports | 1 |
Power supplies (up to 2) | 1200W AC, 1200W HVAC/HVDC |
Typical power (AC) | 580W |
Maximum power (AC) | 965W |
Input voltage (AC) | 100 to 240V |
Input voltage (High-Voltage AC [HVAC]) | 100 to 277V |
Input voltage (DC) | –40V to –72V |
Input voltage (High-Voltage DC [HVDC]) | –240V to –380V |
Frequency (AC) | 50 to 60 Hz |
Fans | 3 fan trays |
Airflow | Port-side intake and exhaust |
Physical dimensions (H x W x D) | 3.38 x 17.41 x 23.6 in (8.59 x 44.2 x 59.9 cm) |
Acoustics | 76.7 dBA at 40% fan speed, 88.7 dBA at 70% Fan speed and 97.4 dBA at 100% Fan speed |
RoHS compliance | Yes |
MTBF | 290,680 hours |
Minimum ACI image | ACI-N9KDK9-14.1.2 |
Minimum NX-OS image | NXOS-9.3(1) |
Performance and scalability specifications | |
Maximum number of Longest Prefix Match (LPM) routes | 896,000 |
Maximum number of IP host entries | 896,000 |
Maximum number of MAC address entries | 256,000 |
Maximum number of multicast routes | 128,000 |
Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000 Maximum: 32,000 |
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine: 5000 ingress 2000 egress |
Maximum number of VLANs | 4096 |
Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000 Maximum: 16,000 |
Maximum number of ECMP paths | 64 |
Maximum number of port channels | 512 |
Maximum number of links in a port channel | 32 |
Number of active SPAN sessions | 4 |
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
Number of Network Address Translation (NAT) entries | 1,023 |
Maximum number of Multiple Spanning Tree (MST) instances | 64 |
Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
Number of Queues | 8 |
Environmental properties | |
Operating temperature | 32 to 104°F (0 to 40°C) |
Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
Humidity | 5 to 95% (noncondensing) |
Altitude | 0 to 13,123 ft (0 to 4000m) |
Weight | |
Cisco Nexus 93216TC-FX2 without power supplies or fans | 27.4 lb (12.4 kg) |
N9K-C93216TC-FX2 : Nexus 9K Fixed with 96p 100M/1/10GBASE-T and 12p 40G/100G QSFP28
