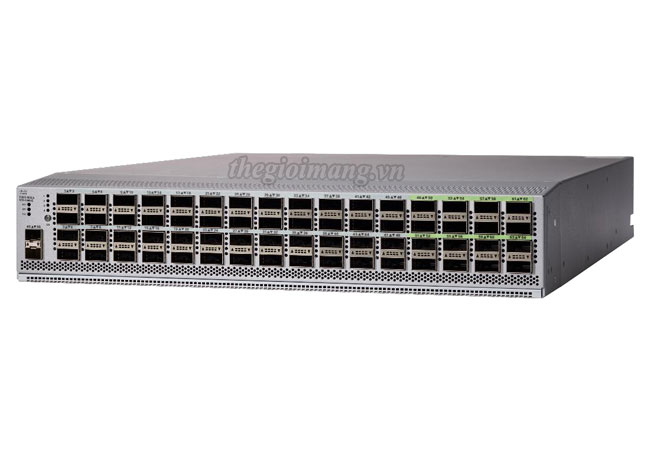

Thiết bị chuyển mạch Switch Cisco Nexus N3K-C3464C
Model | N3K-C3464C | |
Ports | 64 x QSFP+/QSFP28 ports and 2 x SFP+ | |
Port speeds | 40, 4x10, 100, and 4x25 Gb on QSFP ports 10 Gb on SFP ports |
|
CPU | 4 cores | |
System memory | 16 GB | |
SSD drive | 128 GB | |
System buffer | 22 MB | |
Management ports | 2 ports: 1 RJ-45 and 1 SFP | |
USB ports | 1 | |
RS-232 serial ports | 1 | |
Power supplies (up to 2) | 1200W AC, 930W DC, or 1200W HVAC/HVDC | |
Typical power (AC/DC) | 460W | |
Maximum power (AC/DC) | 1000W | |
Input voltage AC | 100 to 240V | |
Input voltage (High-Voltage AC [HVAC]) | 200 to 277V | |
Input voltage DC | –48 to –60V | |
Input voltage (High-Voltage DC [HVDC]) | –240 to –380V | |
Frequency (AC) | 50 to 60Hz | |
Fans | 3 | |
Airflow | Port-side intake and exhaust | |
Physical dimensions (H x W x D) | 3.38 x 17.4 x 22.5 in.(8.6 x 44.1 x 57.1 cm) | |
Weight | 35.4 lb. (16.1 kg) | |
Acoustics | 80.2 dBA at 50% fan speed, 88.7 dBA at 70% fan speed, and 99.5 dBA at 100% fan speed | |
RoHS compliance | Yes | |
MTBF | 341,480 hours | |
Maximum scale | Classic L2/L3 profile | L3-heavy profile |
MAC addresses | 32k | 2k |
VLAN | 4k | 4k |
Multiple Spanning Tree (MST) instances | 64 | 64 |
Hot-Standby Router Protocol (HSRP) groups | 490 | 490 |
Active SPAN sessions | 64 | 64 |
ECMP paths | 32-way, 1k group | 32-way, 1k group |
Virtual Routing and Forwarding (VRF) instances | 1k | 1k |
IPv4 hosts | 32k | 64k |
IPv4 LPM | 4k | 64k |
Multicast routes | 8k | – |
ACL entries | 7k ingress | 1k ingress |
Inband Network Telemetry (INT) | 1k watch list, 256 drop list | 1k watch list, 256 drop list |
Environmental | ||
Operating temperature | 32 to 104°F (0 to 40°C) | |
Non-operating (storage) temperature | –40 to 158°F (–40 to 70°C) | |
Humidity | 5 to 95% (noncondensing) | |
Altitude (Operating) | Up to 13,123 ft. | |
Altitude (Non-Operating) | Up to 16,000 ft. |
N3K-C3464C : Nexus 3464C programmable switch, 64 40/100G QSFP28 ports
Data sheet Cisco Nexus 34180YC and 3464C Programmable Switches
